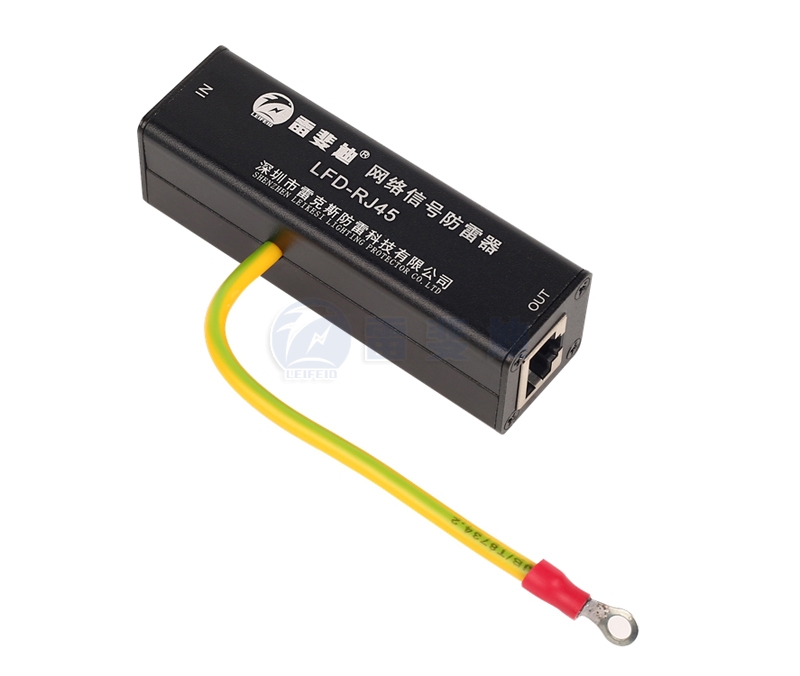

Scope of application

1. The 100M network lightning protection device is in accordance with the international standard IEC61643.21 and the national standard GB18802.21;

2. The designed, produced and tested products are strictly controlled in accordance with the ISO9001 quality assurance system;

3. The network signal lightning protection device is mainly used for the protection of surge overvoltage and overcurrent that invades equipment along the network signal line, such as network switches, network servers, routers, MODEMs, network terminals, etc., lightning protection interface type one;

4. It is generally RJ45 interface, which protects network signals within 100M.

Product advantages

■ Large flow capacity and long service life;

■ Adopt multi-level protection, low residual pressure and good protection effect;

■ Low insertion loss, superior transmission performance;

■ Built-in fast semiconductor protection device, nanosecond response speed;

■ Energy saving, environmental protection, rack structure, easy installation;

Technical Parameters

Installation, wiring

Ø The lightning protection device is connected in series between the protected equipment and the signal channel

Ø The input terminal IN of the lightning arrester is connected to the signal channel, and the output terminal OUT is connected to the protected equipment and installed close to the equipment, and cannot be reversed

Ø Reliably connect the ground wire of the lightning protection device to the ground bar of the lightning protection system, the shorter the wiring, the better, and the longest cannot exceed 1 meter

Wiring diagram
