Description
Product description

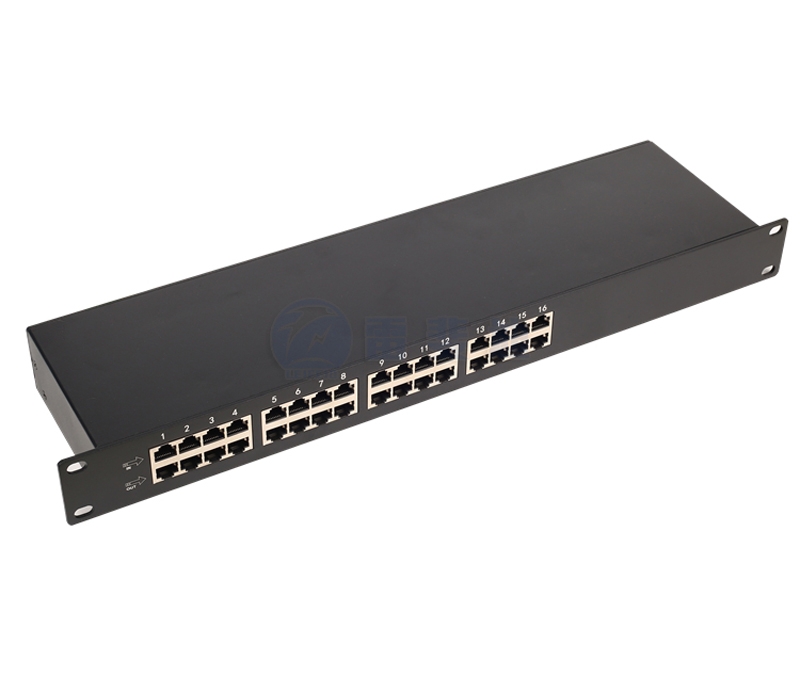

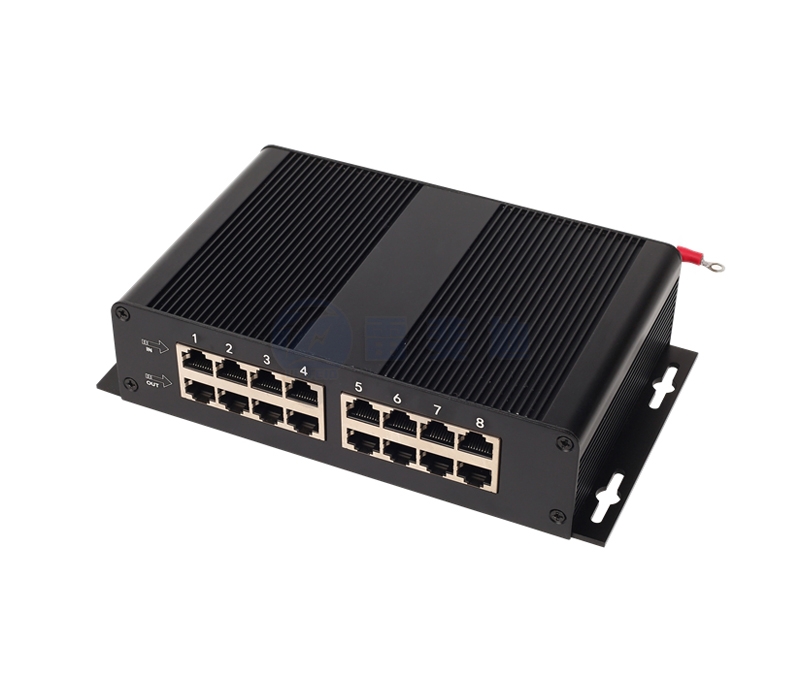

It is used for the lightning protection of multiple network lines such as switch network equipment workstations and integrated network line lightning strikes. Mainly used for the lightning protection and overvoltage protection of the network data, information transmission line and equipment of 2 channels/4 channels/8 channels/16 channels/24 channels and video recorders, such as 10/100/1000Mbps SWITCH, HUB, ROUTER and other networks Equipment lightning strikes and induced overvoltage protection caused by lightning electromagnetic pulses.
Performance
-Large flow capacity and wide working frequency
-Low insertion loss, low residual voltage, fast response time
-Superior signal transmission performance
-Multi-level protection
-Simple structure, convenient and fast installation
Technical Parameters
model | LFD-02/04/08/16/24RJ45(100 trillion) | LFD-02/04/08/16/24RJ45(Gigabit) |
Nominal working voltage Un | 5V | 5V |
Maximum continuous working voltage Uc | 6.8V | 6.8V |
Nominal discharge current(8/20μS)In | 5kA | 5kA |
Maximum discharge current(8/20μS)Imax | 10kA | 10kA |
Line-shield line voltage protection level(In)Up | ≤15V | ≤15V |
Shielded wire-PG voltage protection level(In)Up | ≤100V | ≤100V |
Response time tA | ≤1ns | ≤1ns |
Transmission rate | 100Mbps | 1000Mbps |
Insertion lossaE | ≤0.5dB | ≤0.5dB |
temperature range | -40℃…+80℃ | -40℃…+80℃ |
Interface Type | RJ45 | RJ45 |
Shell material | Aluminum alloy | Aluminum alloy |
Installation method | Fixed installation (or rail installation) | Fixed installation (or rail installation) |
Protection level | IP20 | IP20 |
Wiring diagram
