Description
一、Application and characteristics

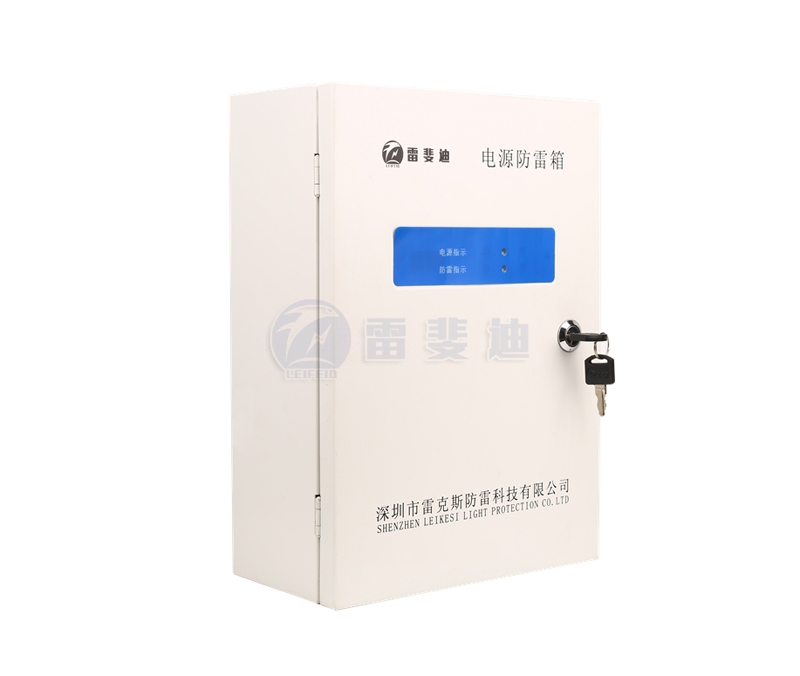

The three-phase integrated box-type power surge protector is designed according to IEC and GB. It makes full use of the advantages of MOV (pressure sensitive), GDT (gas discharge tube), and TVSS (transient diode) to avoid GDT leakage. Large flow has continuous flow, long response time, low residual pressure of MOV, TVSS, and small leakage flow. It is suitable for low-voltage power distribution systems such as telecommunications, smart buildings, airports, factories, power, railways, etc., electrical appliances, electronic equipment and interconnection of equipment System over-voltage and high-voltage static protection, over-voltage surge protection in the main power distribution system.
二、Technical Parameters
Model | Protection level | Maximum duration | Nominal discharge | Maximum discharge curren tImax(8/20μs) | Protection level Up | Response time ns | Shell material | Shell protection level |
Operating voltage Uc | Current In(8/20μs) | |||||||
LFD220-40C | Class C | 385V | 20KA | 40KA | 1.5KV | ≤10ns | Iron box conforms to UL94V-0 | IP20 |
LFD220-60C | Class C | 385V | 30KA | 60KA | 1.8KV | ≤10ns | Iron box conforms to UL94V-0 | IP20 |
LFD380-40C | Class C | 420V | 20KA | 40KA | 1.8KV | ≤10ns | Iron box conforms to UL94V-0 | IP20 |
LFD380-60C | Class C | 420V | 30KA | 60KA | 2.0KV | ≤10ns | Iron box conforms to UL94V-0 | IP20 |
LFD380-80C | Class C | 420V | 40KA | 80KA | 2.2KV | ≤10ns | Iron box conforms to UL94V-0 | IP20 |
LFD380-100C | Class C | 420V | 50KA | 100KA | 2.5KV | ≤10ns | Iron box conforms to UL94V-0 | IP20 |
三、Product features
○ The integrated design of Siemens pressure sensitive, gas discharge tube and a variety of components embodies multi-level discharge, large lightning flow and high protection level;
○ Phoenix terminal, strong fire resistance, safe, reliable, and good maintainability;
○ Full protection design, low leakage current and low residual voltage;
○ Each discharge unit is equipped with hot melt protection and overcurrent protection;
○ Adopt fire and moisture-proof technical measures;
○ Equipped with an independent safety protective grounding (PE) busbar to prevent reverse connection;
○ Work status indication (lightning protection status means the light is on, failure or failure means the light is off);
○ Beautiful structure and convenient installation.
四、Product installation and application
1. Product drawing and installation diagram:
2. The protector is used in the main power distribution system power supply C-level lightning protection, and installed in parallel on the main power distribution cabinet, distribution cabinet or the incoming end of the terminal power system;
3. It can be operated indoors and outdoors;
4. All wiring must be firm and reliable electrical connection;
5. The lightning protection grounding should meet the requirements of lightning protection specifications, the grounding wire should be as thick and short as possible and the grounding resistance should be less than 10Ω;
6. The grounding wire should be less than 1 meter;
7. It can be installed in the C level of the power distribution system.
